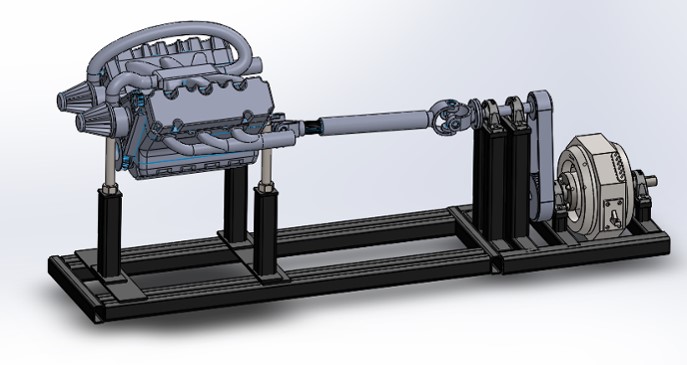

AUTOMOTIVE ENGINE DYNAMOMETER


MODEL : AED-300

This heavy duty engine dynamometer can extract 300kW of mechanical power from automotive engines, including cars and trucks. Its heavy-duty frame and universal engine coupling shaft are ideal for high torque applications. The air-cooled eddy current dynamometer requires no external cooling lines, and is easy to install and use, giving years of trouble free service. The sophisticated controller can operate the dynamometer from the front panel or from a computer via the remote mode. Control modes include Manual Load, Speed, Torque and Road Load control. The dynamometer can hold the vehicle under test at a given speed for tuning, or fuel consumption measurements, or mimic actual road load conditions. Drive cycle software is included allowing vehicles to be tested on any drive cycle required. Additional inputs are included for Data Acquisition, display and logging. With optional throttle servo motor the dynamometer can run fully automated test cycles.



FEATURES

  • 300kw (40hp) Mechanical Power Absorption
  • 600Nm Torque from 500 to 6000rpm
  • Heavy Duty Universal Joint Coupler
  • 5th Industrial Generation Controller Included
  • Integrated DAQ Input Channels for logging
  • Adjustable noze for various wheel-base
  • Engine Jacks for easy adjustments
  • Free computer software for graphic display
  • 1 year warranty
  • High volume, low noise blower and stand
  • Pneumatic or screw type wheel clamp
  • Wide Band O2 Sensor
  • Digital Fuel Scale
  • 5-Gas Exhaust Emissions Analyzer
  • Current / Voltage Clamp Meter
  • In-floor or Ramp Versions available

Focus warranties against manufacturer’s defects for all of our equipment. Warranty will commence from the date of Delivery.

Focus Applied Technologies strives to provide innovative, technologically advanced ecologically sound products and services to a wide range of end users. Many of our systems contain components, which require routine maintenance and/or replacement. Some of our systems contain separately warrantied sub-systems (eg. pressure sensors in combustion analysis systems, wide band oxygen sensors in Air/Fuel Meters) in which case we pass on the manufacturers warranty. Our warranty policy is designed to insure appropriate quality assurance to our valued customers given the demanding environment of our product development schedule.

Limited Warranty conditions:

  • The product is covered, under the terms listed herein, for a duration of 1 year from the delivery date.
  • This warranty covers defects in materials or workmanship, which cause system failure within the warranty period due to normal use.
  • Focus will repair or replace defective components as required.
  • Failures due to inappropriate installation and/or maintenance are only covered if Focus is responsible for the installation and maintenance
  • Separately warrantied sub systems will carry the original manufacturer’s warranty. This includes, but is not limited to, the major subsystems such as: Pressure sensor/amplifiers, Wide-Band oxygen sensors and display and similar.

EXCLUSIVE

The warranty is not applicable to:

  • Damage or loss caused by modification, alteration, repair by any unauthorized party.
  • Failures of the system caused by inappropriate use, abuse, significant over-speeding, flooding, or excessive Electro Static discharge (eg. lightening strike).
  • Damage or loss caused by mishandling of the customer or person(s) that has accessed to the Product in the customer’s premise.
  • Damage or loss caused by natural disaster or any other sources beyond Focus’s control.
  • Damage or loss as a result of external bodies.
  • Damage or loss caused by another device that is connected to the Product.
  • Damage resulting from accidents, misuse, abuse, tampering or failure of the customer to follow normal operating procedures outlined in the user manual.
