Power Fuel Stretcher ECU

Piggyback Fuel Injection Controller with Synthetic O2 Feedback
Product PDF Inquire Pricing

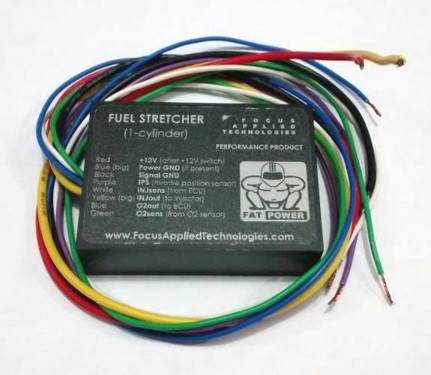

Power Fuel Stretcher ECU Hardware Module
Compact ECU Hardware (70x50x20mm)

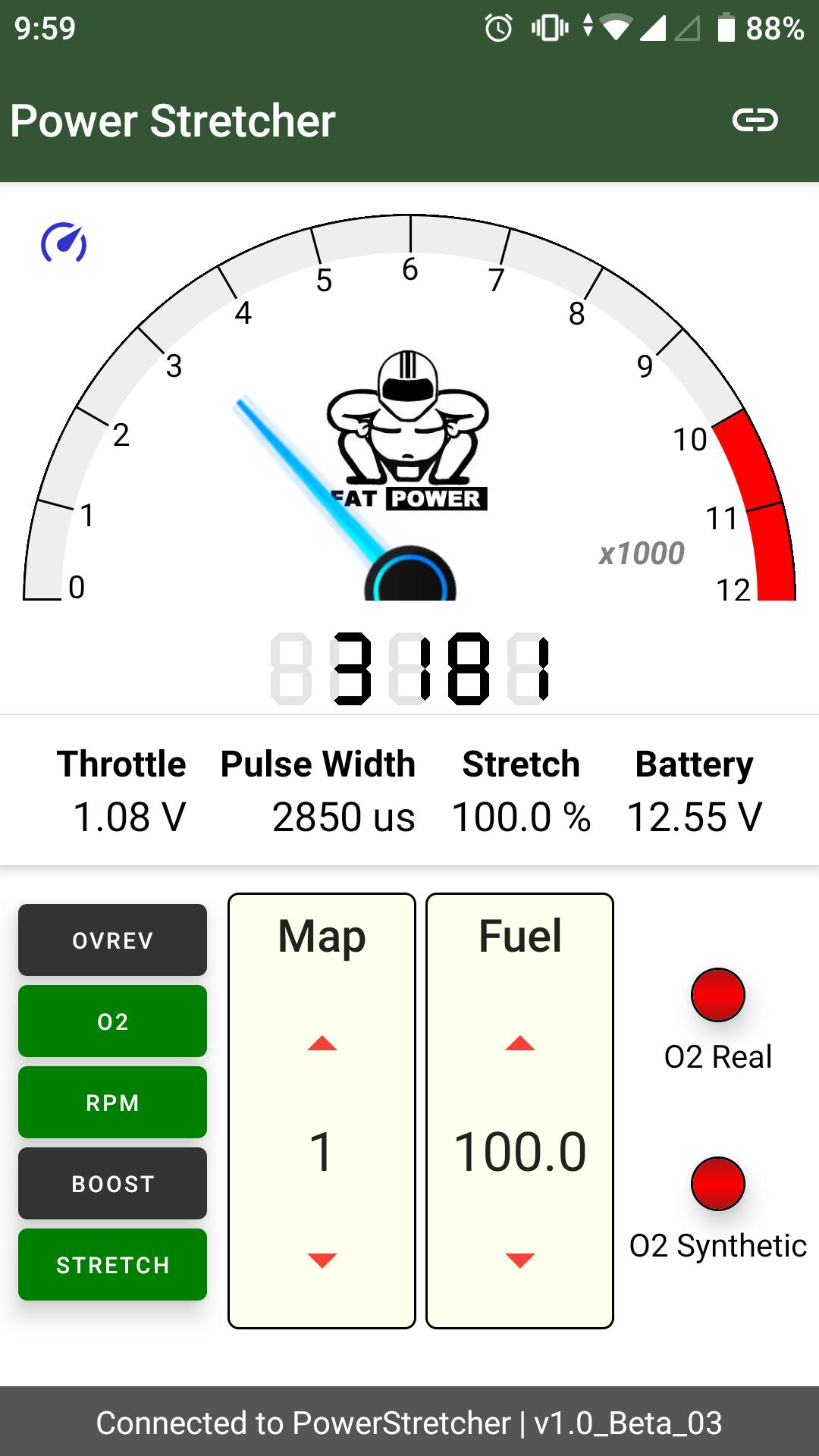

Android Bluetooth Tuning GUI
Bluetooth Graphic Equalizer GUI App
Fuel Trimming
-50% to +80%
O2 Signal
Synthetic Feedback
Torque Gain
+10% Launch Torque
Interface
Bluetooth / Serial

Piggy-Back Fuel Injection & Pulse Width Stretching

The Power Fuel Stretcher is a precision piggyback electronic control unit designed to stretch fuel injection pulse width for extra horsepower and torque, while feeding a valid synthetic Oxygen (O2) signal back to the vehicle's factory ECU.

Tuning is performed through a intuitive "graphic equalizer" GUI. Fueling can be decreased by up to 50% or enriched up to 80% (typical performance gains require 5% to 15% enrichment).

Synthetic O2 Closed-Loop Protection & Boost Control

Our smart algorithm follows real O2 sensor signals during engine idle for consistent starting and smooth idling. During full-throttle enrichment, the Stretcher outputs a synthetic stoichiometric O2 voltage signal to prevent the factory ECU from trimming back fuel.

Key Engineering Features:
  • Synthetic O2 Signal Generator: Compatible with Delphi pumped-reference and standard Zirconia O2 sensors.
  • Boost & RPM Fuel Scaling: Adjusts fuel stretch ratio as a function of RPM or manifold boost pressure.
  • Rev-Limit Bypass: Eliminates factory fuel-cut rev limits for extended top-end power.
  • Thermal Reduction: Enriched AFR lowers combustion chamber temperatures for engine longevity.

Product Specifications & Model Variants

Standard Serial Harness Edition

DIY Wire Harness Series

  • Model 2CH-WH: 2-Cylinder Engine Fuel Stretcher
  • Model 4CH-WH: 4-Cylinder Engine Fuel Stretcher
  • • Direct RS-232 / USB Serial Tuning Interface
Wireless Smartphone Edition

Bluetooth Wireless Series

  • Model 2CH-WHBT: 2-Cylinder with Integrated Bluetooth
  • Model 4CH-WHBT: 4-Cylinder with Integrated Bluetooth
  • • Android App Real-time Equalizer & Graph Tuning

Product Documentation & Software

Power Fuel Stretcher Product Specification Profile

Technical overview and pinout documentation (PDF format)

Download Profile
Power Fuel Stretcher User & Wiring Manual

Installation guide, wiring diagrams, and calibration manual (PDF format)

Download Manual
Android Bluetooth Tuning Application Package

Official Bluetooth GUI APK package for Android devices (ZIP/RAR archive)

Download Software

Inquire / Order ECU

Need help selecting between 2-channel or 4-channel wire harness / Bluetooth models for your vehicle?

Request Price Quote Email Sales Team
