Home / Dynamometers / ACD-200 Automotive Chassis Dyno

Automotive Chassis Dynamometer

Model: ACD-200 / ACD200-2WD
Product PDF Request Pricing

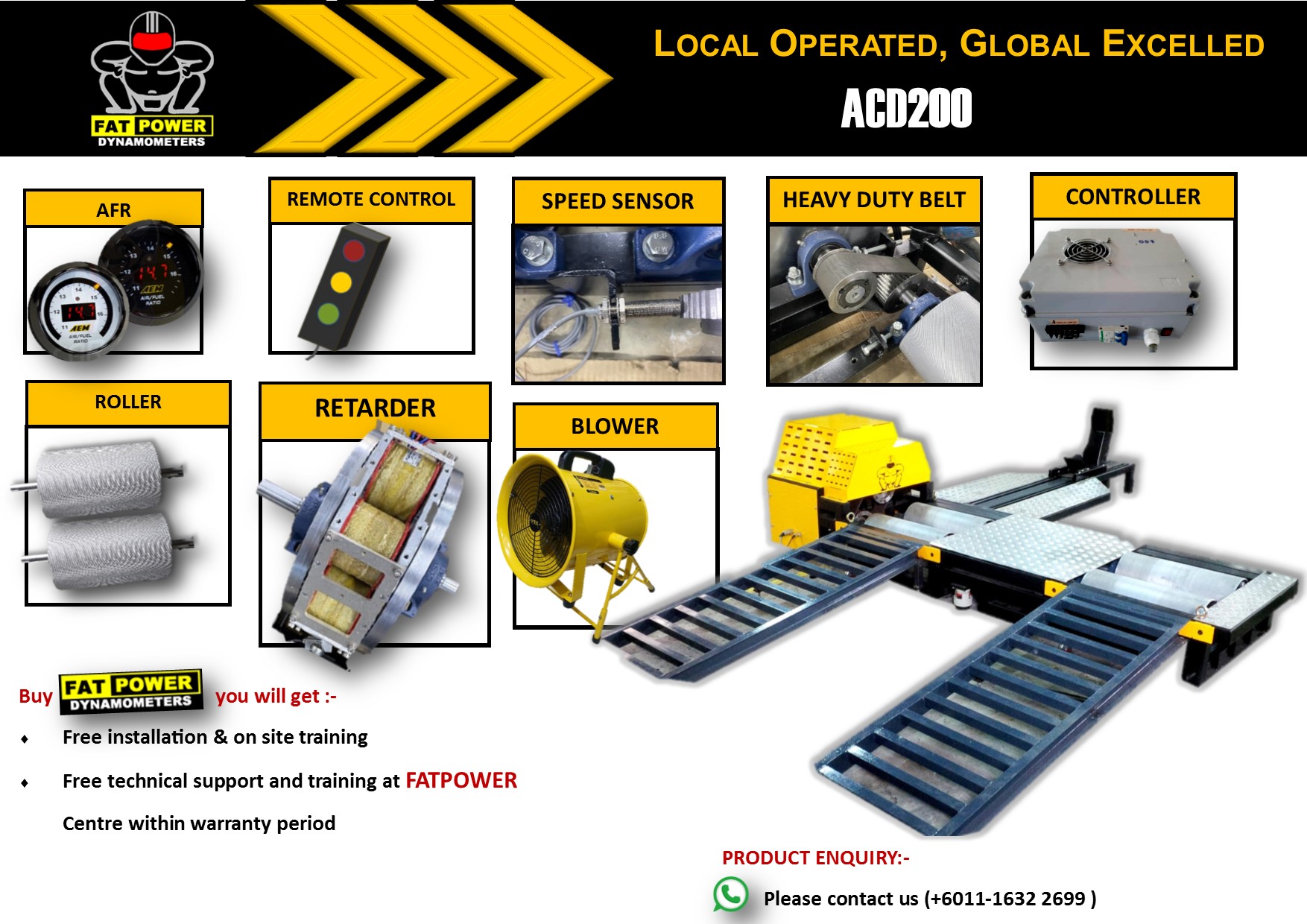

ACD-200 Chassis Dynamometer Flyer
Power Absorption
200 kW (300 HP)
Top Speed
200 KPH (120 MPH)
Roller Spec
12" Textured
Absorber Type
Air-Cooled Eddy

High Performance Vehicle Tuning & Testing Rig

The ACD-200 Automotive Chassis Dynamometer can extract up to 500kW peak mechanical power from competition vehicles, passenger cars, and light trucks. Its heavy-duty frame and deep-groove textured 12-inch rollers are engineered for high-power applications without tire slip.

The air-cooled eddy current retarder requires no external water cooling plumbing, making it easy to install and maintain for years of trouble-free operation. The embedded 5th Gen controller operates standalone from the front panel or via PC software for Manual Load, Speed, Torque, and Road Load emulation.

Key Technical Features

200kW (300hp) Mechanical Power Absorption
200kph (120Mph) Top Speed Rating
12-inch Tandem Textured Steel Rollers
Low Deck Height for Easy Vehicle Loading
Embedded Digital Speed & Load Controller
Integrated DAQ Multi-Channel Input Logging
Adjustable Wheelbase Nose Positioning
Free PC Graphical Logging Software Included

ACD-200 Technical Specifications Sheet

ACD Technical Specifications Chart
Parameter Specification Value
Max Power Absorption 200 kW (300 HP) Continuous / Peak up to 500 kW
Max Speed Rating 200 km/h (120 mph)
Roller Diameter 12-inch (305 mm) Deep-Groove Knurled Steel
Absorber Type Air-Cooled Heavy Duty Eddy Current Retarder
Control Modes Manual Power, Hold Speed, Hold Torque, Road Load Emulation
Software Interface USB / RS232 Live PC Windows Acquisition Software
Warranty Coverage 1-Year Standard Factory Warranty

Available Accessories & Upgrades

  • Digital Fuel Scale (DFS)
    High-precision mass balance for real-time fuel consumption measurement.
  • 5-Gas Exhaust Emissions Analyzer
    Logs HC, CO, CO2, O2, and NOx levels synchronized with engine RPM and load.
  • In-Floor Pit Mount or Drive-On Ramp Versions
    Custom mechanical frames for pit installation or above-ground ramp loading.

1-Year Limited Manufacturer Warranty

Focus Applied Technologies warrants against manufacturer's defects for all equipment. Warranty commences from the date of delivery.

Warranty Coverage Conditions:

  • Covered for 1 year from the delivery date under normal operation.
  • Focus will repair or replace defective components as required.
  • Separately warrantied sub-systems carry original manufacturer warranty (e.g. pressure sensors, wideband O2 sensors).

Chassis Dyno Family

Dyno Accessories

  • Optical / Inductive RPM Clamp
  • Wireless Remote Control
  • Wideband AFR Sensor Controller
  • Air-Cooled Eddy Retarder Units
  • Electronic Throttle Servo Actuator
